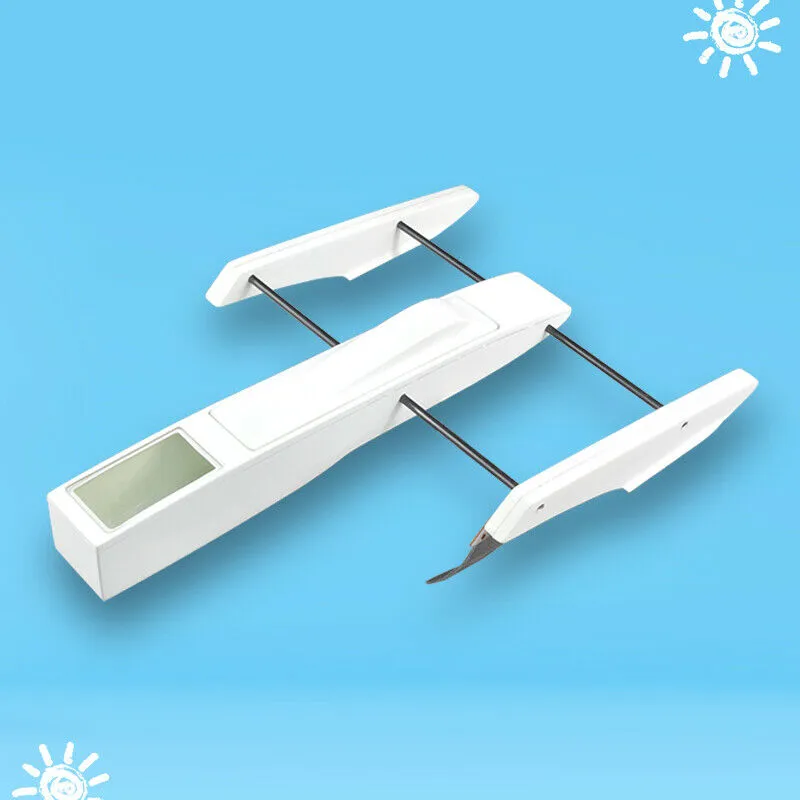

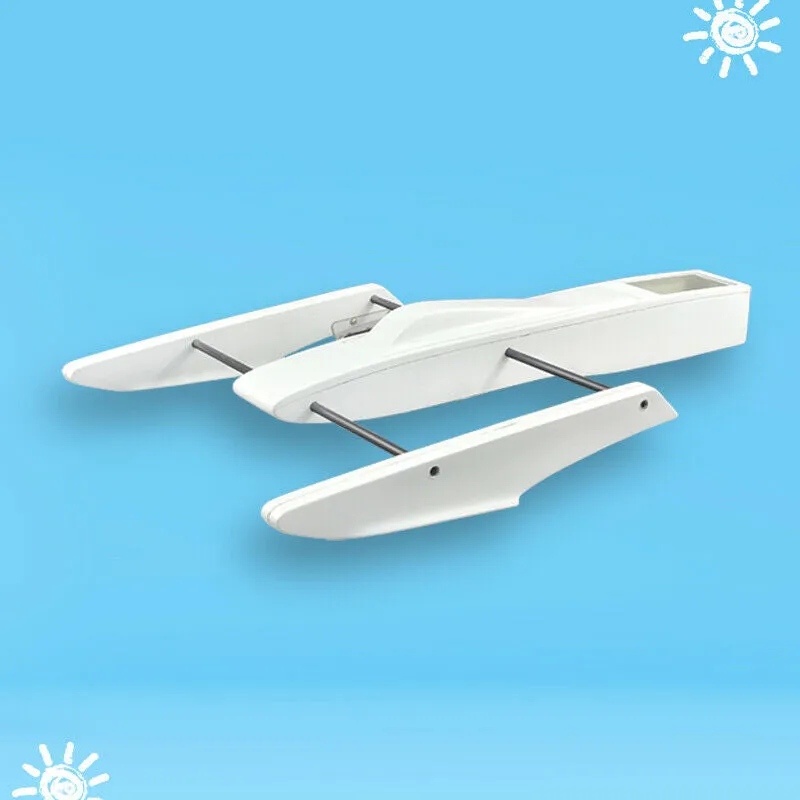

The hull is made of epoxy resin FRP composite materials and high quality gel coats. There is no deform when time goes by.
Suitable for small scale electric racing.
Remark:

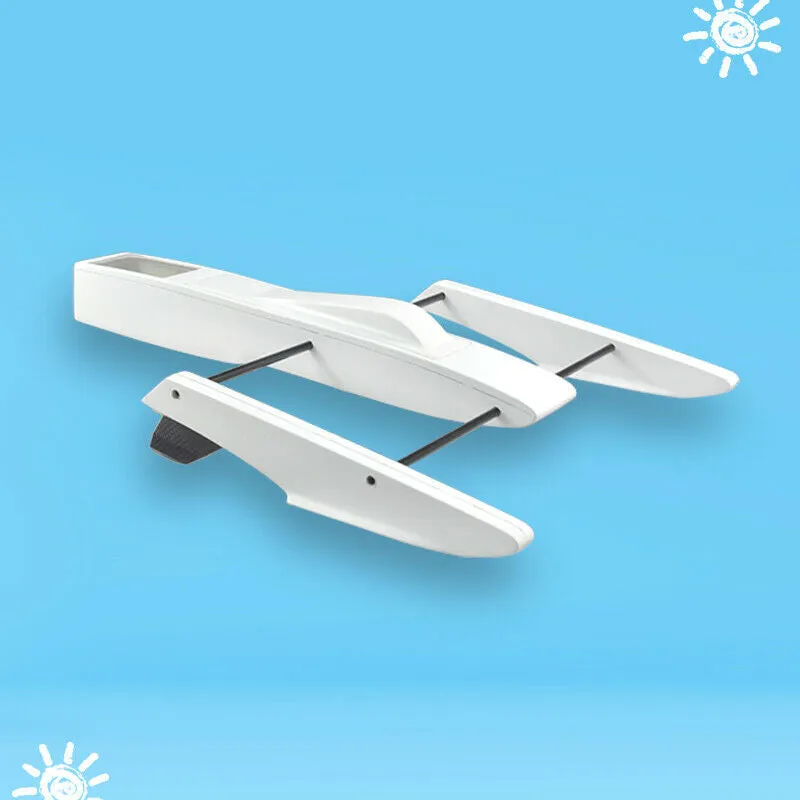

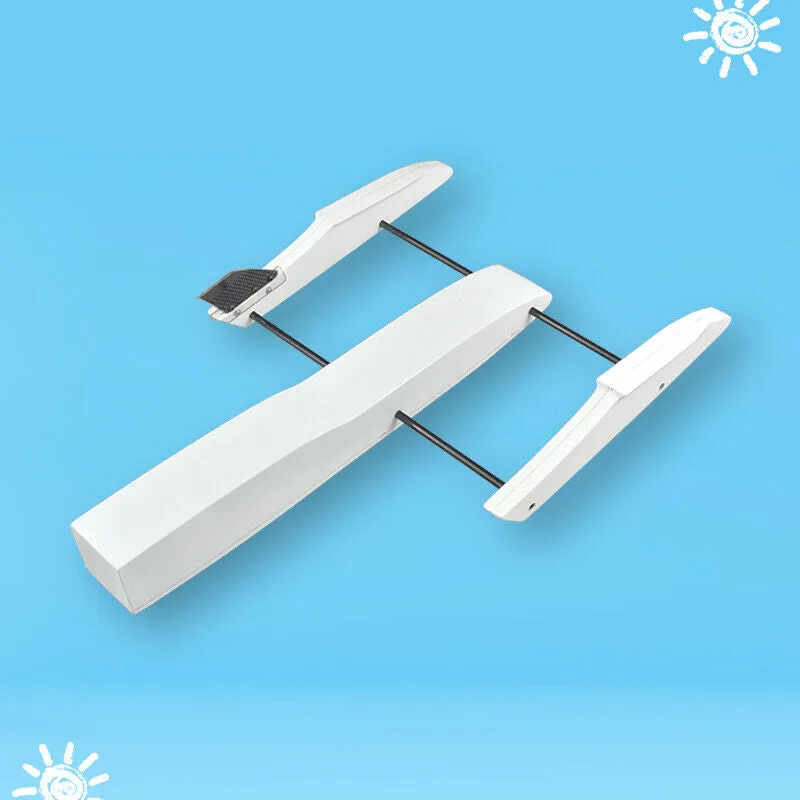

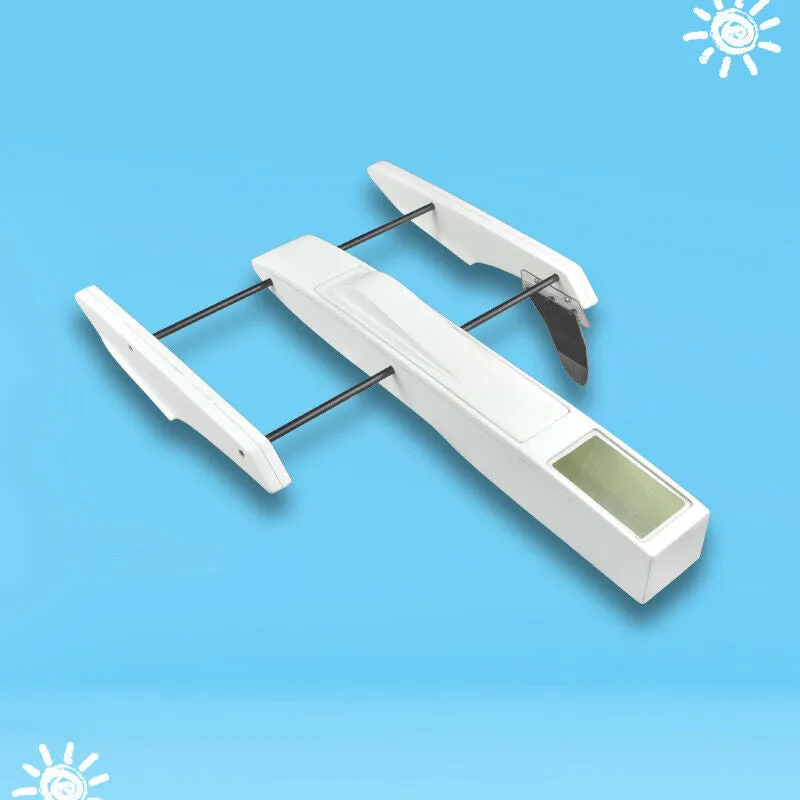

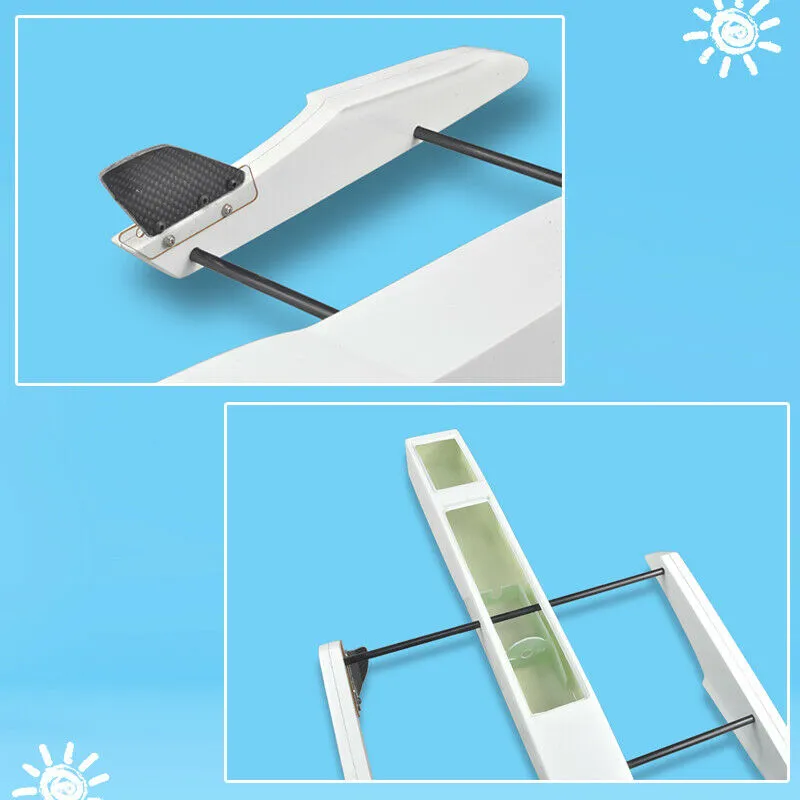

1. This hull does includes 1 x Carbon Fiber RC Boat Water Stabilizer Trim Tab Fin, as shown in the pictures.
2. The hull does not includes: all electronic and hardware accessories, ie. the rudder, shaft & etc are for illustration only. If you want us installing the metal hardware, like rudder, shaft, & props for you, please see the ARR Version of this hydro on our ebay store.
- FRP Motor Mount included.

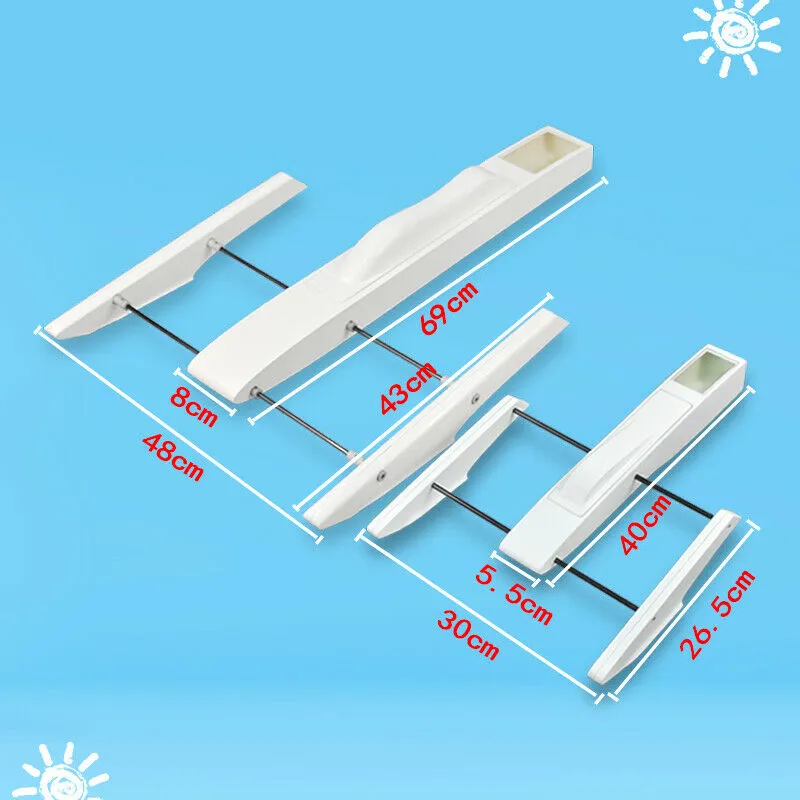

- The last photo illustrating the sizes comparison with the other larger outrigger ! And this listing is for the smaller outrigger. If you want to buy the larger one, please see our listings on the ebay store.
SKU：190311-RC-BOA-04
Video Links for the Build & Runninng & testings
Specifications:
• Total Length: 440 mm
• Tub Lenght: 401 mm
• Tub Height: 40 mm
• Tub Outside Width: 54 mm
• Tub Inside Width: 48 mm
• Sponson Lenght: 263 mm
• Sponson Width: 18 mm
• Ride-Pads Size: 103 x 24 x 1.5 mm
• Ride-Pads AoA: 4°
• Ski Width: 20 mm
• Ski AoA: 1.5°
Equipment:
• Motor: Brushless in-runner or out-runner, no water cooling
• Motor Size: 28x40 up to 30x50 mm
• Motor with 2S LiPo: 4400-4800KV
• Motor with 3S LiPo: 3300 KV
• Prop with 2S LiPo: 430 or 432
• Prop with 3S LiPo: 427
• ESC: 40-60A with no water cooling
• Battery/ESC Connector: XT60 or T-connector
• Servo: Mini/Micro with metal gears
• Battery: 2-3S LiPo with a aprox max size of 118 x 35 x 18 mm
• Motor Mount: Use what you think is appropriate
• Driveline: Use what you think is appropriate
• Rudder: Use a mini-rudder that you think is appropriate
