FAST LSXR Intake Manifold - LS3 Rectangle Port

FAST LSXR Intake Manifold - LS3 Rectangle Port

$ 60.34

$ 78.44

Save: $

Option1:
  • LSXRManifoldOnly
  • Plus102MMBigMouthThrottleBody
  • TheWorks
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

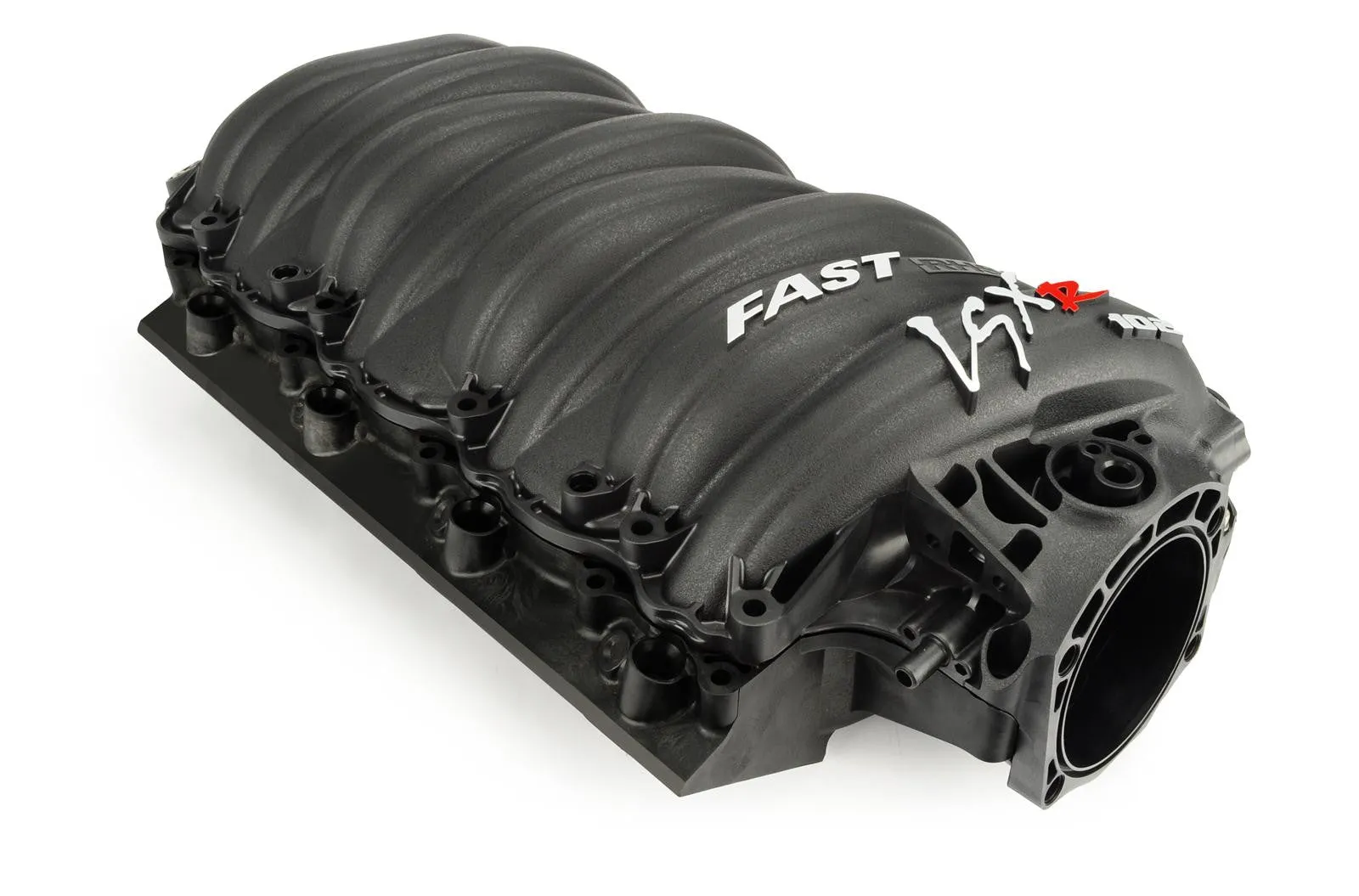

LSXR│Rectangle Port Heads (LS3, L99, L76)

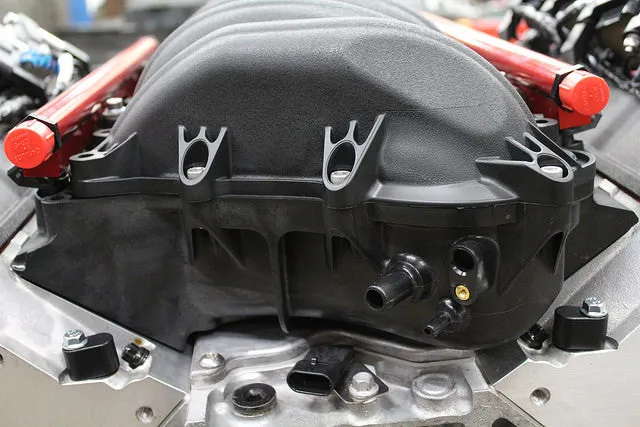

From FAST: "FAST™ engineers teamed up with airflow specialists at RHS® to develop polymer intake manifolds for GM LS based engines. Testing on a near stock LS7 engine with a Big Mouth 102mm Throttle Body™ produced gains of 16 horsepower, and 26 rear wheel horsepower on a 500c.i. engine. The LSXR™ 102mm Intake Manifold features a revolutionary new modular design that allows fast and easy disassembly and features the ability to remove individual runners for porting.

Constructed from the same advanced polymer material as the original FAST™ LSX™ 92mm Intake Manifold, the LSXR™ offers a host of benefits over aluminum aftermarket intakes, including lighter weight, increased strength and improved heat dissipating characteristics. While the LSXR™ features a 102mm air inlet that is perfectly suited to the FAST™ Big Mouth 102mm Throttle Body™. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows the use of factory accessories without modification or clearance concerns.

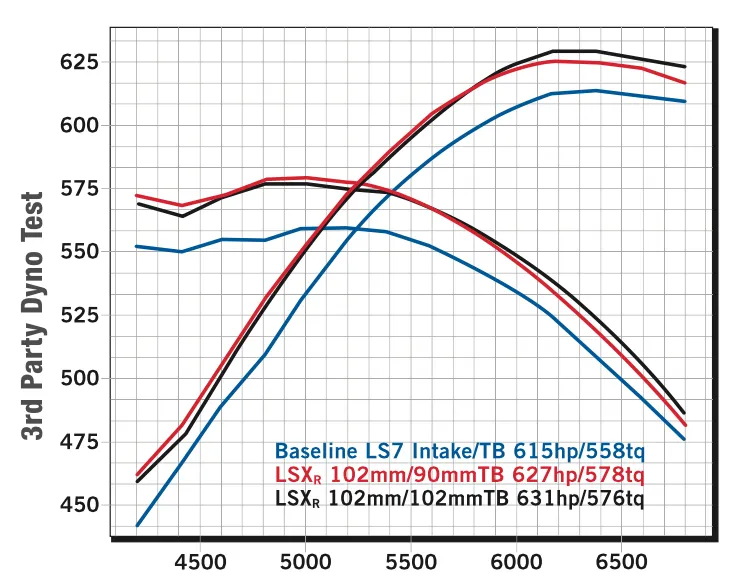

  • Testing shows that a near stock LS7 engine (w/ FAST® 102mm Intake & Throttle Body) produced gains of 16 horsepower; a 500cid LS based engine gained 26 rear wheel horsepower

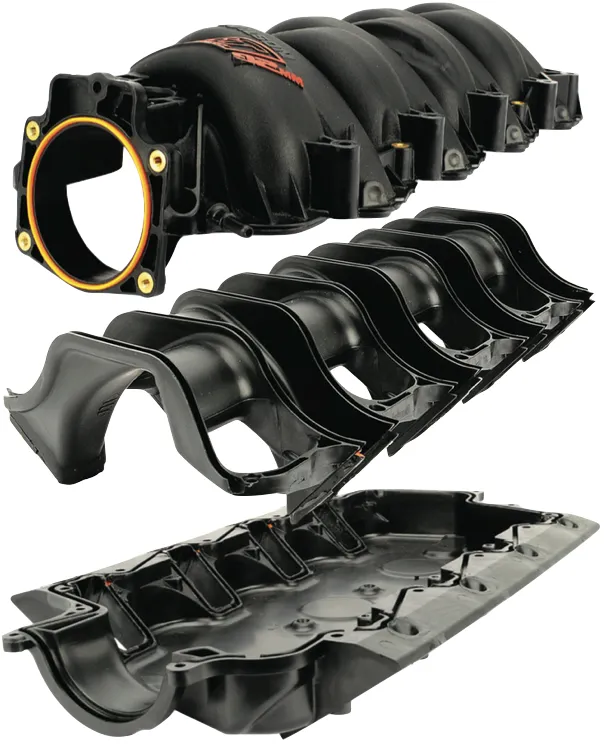

  • Modular design allows fast & easy disassembly & features the ability to remove individual runners for porting
  • Constructed from advanced polymer material that offers a host of benefits over aluminum aftermarket intakes, including lighter weight, increased strength & improved heat dissipating characteristics

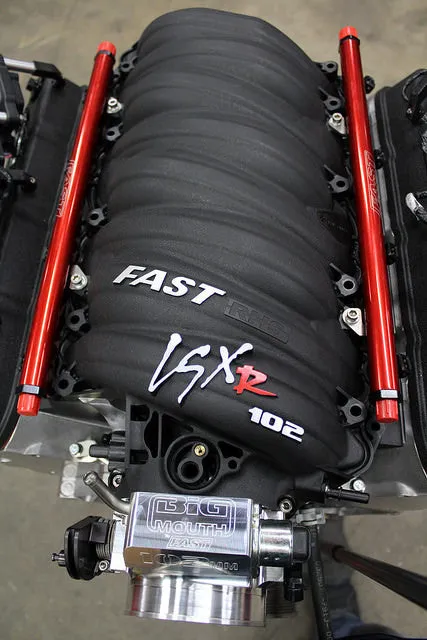

  • 102mm air inlet that is perfectly suited to FAST™ Big Mouth / Big Mouth LT Throttle Bodies

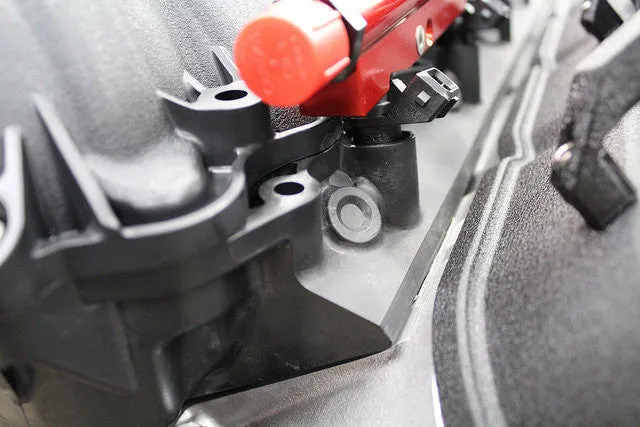

  • Integrated nitrous bungs & a precise bolt-on fit that permits the use of factory accessories & OEM fuel/emission connections w/o adjustments or clearance issues
  • 50 State Legal Under C.A.R.B. E.O. #D-279-9
    • '08-'13 Corvette
    • '06-'13 Corvette Z06
    • '10-'14 Camaro w/ 6.2L
    • '14 Chevrolet SS
    • '09 Pontiac G8 GXP
    • '08-'09 Pontiac G8 GT
    • '95 & Older w/ Retro-Fit GM E-Rod 6.2L"

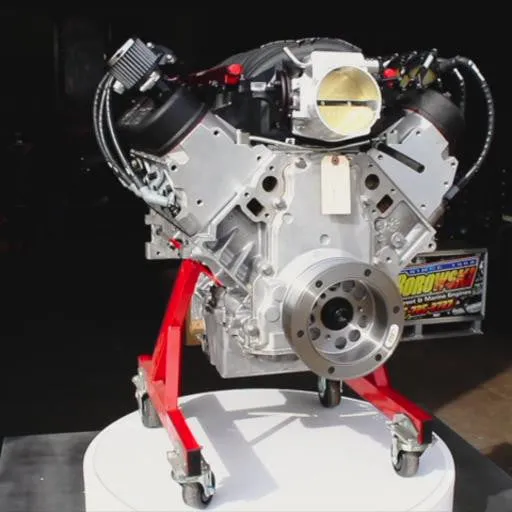

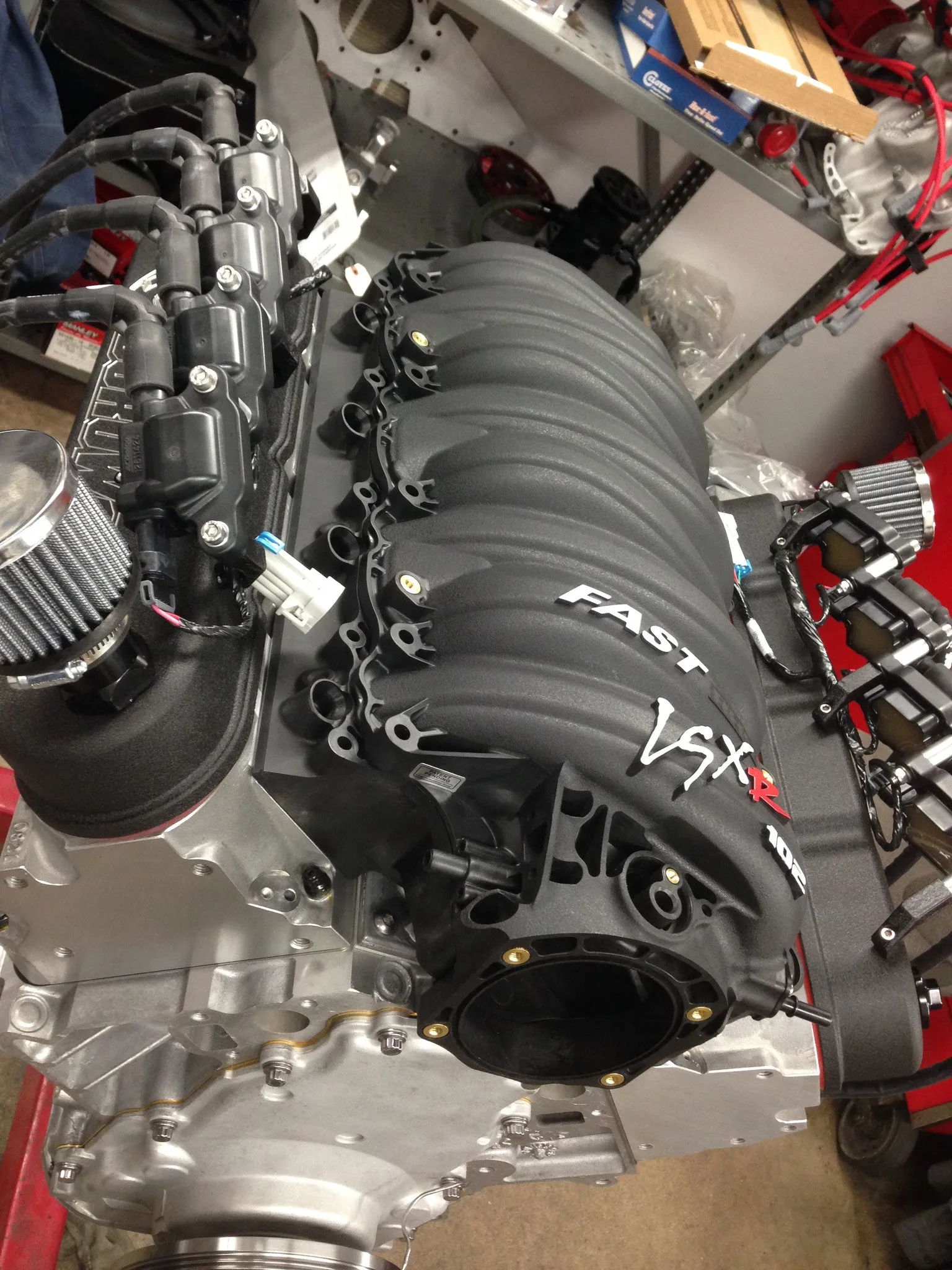

We here at Borowski Race Engines use this as the standard manifold for a lot our builds. The deliver great power across the rpm band and fit well onto the engine. Once installed, they transmit much less sound than a metal aftermarket intake. The FAST LSXR is capable of handling boost and can be plumbed for nitrous if those are in your plans. Check out the dyno video showing one of these intakes making some power on our dyno.



The basic manifold does not include things that you probably need, will want and the Big Box online resellers don't know about because they are phone jockeys. We are engine builders and use these parts all the time.

You can order:

  • the intake only,

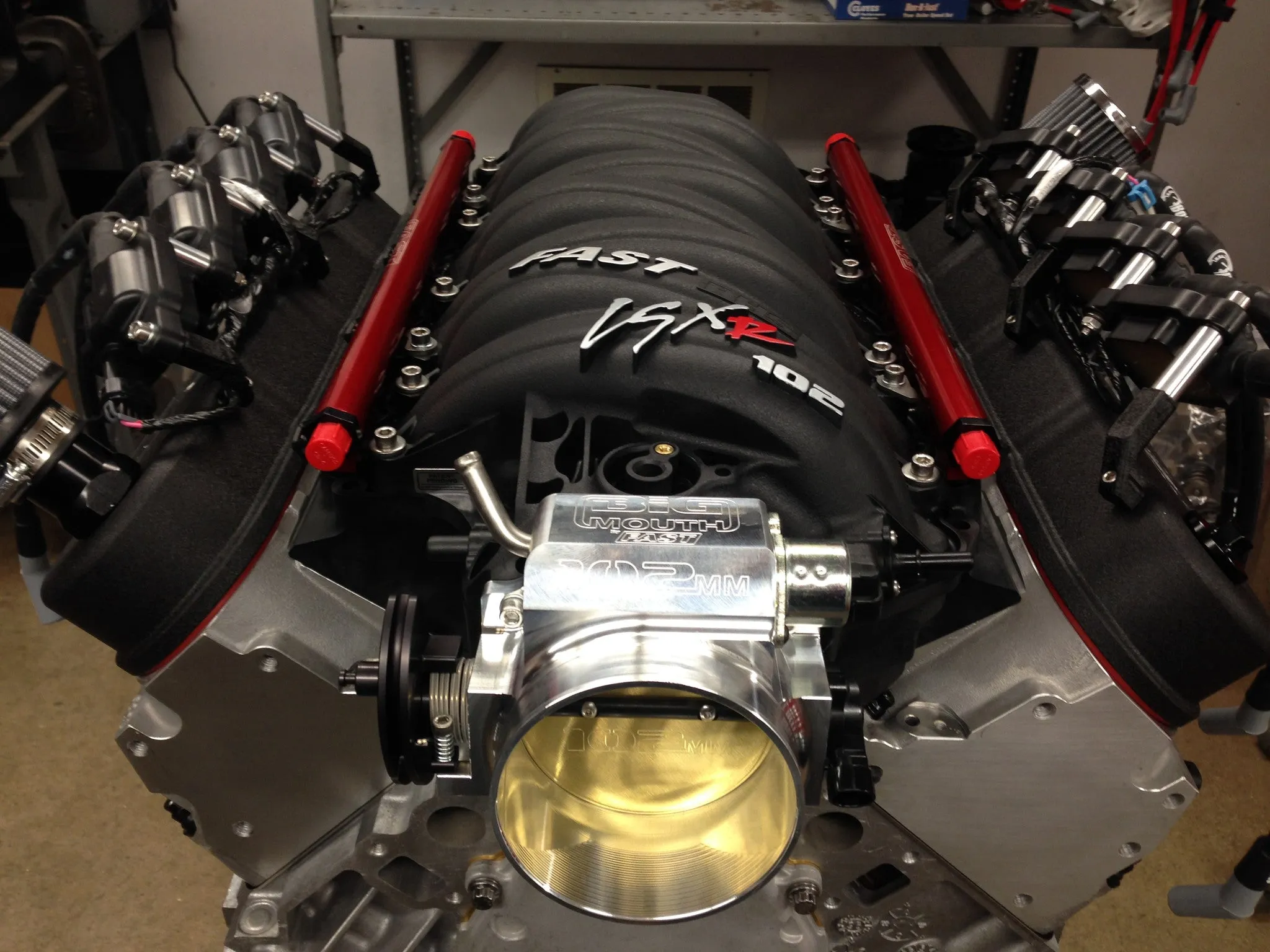

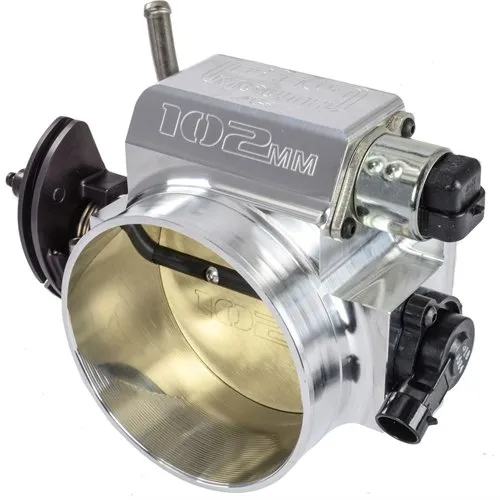

  • a combo with the 102mm Big Mouth Throttle Body or,

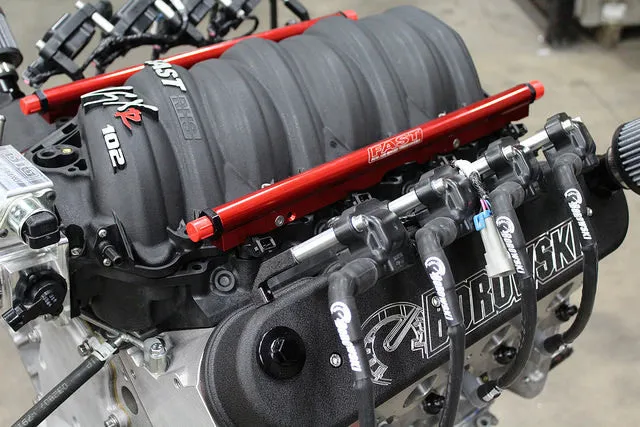

  • "The Works" with FAST fuel rail kit, IAC motor, throttle position sensor and replacement seals.

FREE SHIPPING IN CONTINENTAL USA

Need another FAST, COMP or RHS part? We are authorized dealers and can get you whatever you need. Need this or any other intake plumbed up for nitrous? How about a complete engine?

Questions? Please call us at 815-725-2727.

BUY YOUR PARTS FROM PEOPLE WHO USE THEM!
